Network Video Recorder · 8 Channel

NVR — Reliable Video Storage

8-channel network video recorder with 4K HDMI output, 8 built-in PoE ports, and support for hot-swappable HDDs up to 16 TB. The backbone of any serious Ajax video installation — synchronizes camera footage with intrusion alarm events for fast, reliable evidence retrieval.

8 Channels4K HDMI8x PoE16 TB HDDONVIFEvent Sync
Get a Quote Contact Us

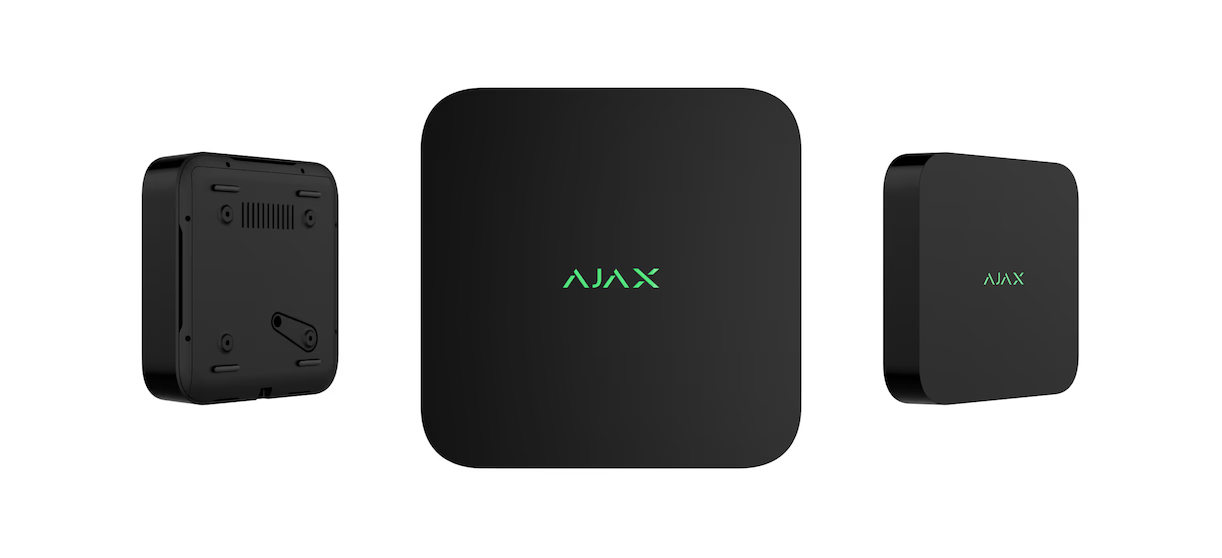

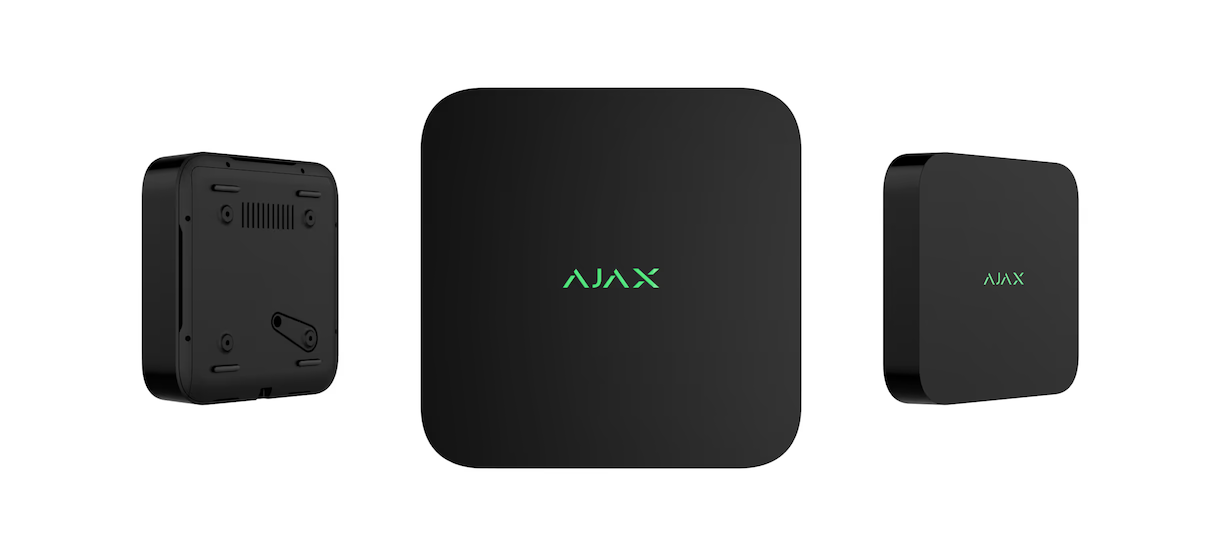

Ajax NVR (8-ch)
Key Features

Why choose Ajax NVR (8-ch)?

Professional-grade hardware engineered for reliable performance in Canadian climate conditions.

📼
8 PoE Ports Built-In
Power and connect up to 8 Ajax or ONVIF-compliant cameras directly — no separate PoE switch required, simplifying cabling and reducing installation cost.
🖥️
4K HDMI Local Monitoring
Connect a monitor directly via HDMI for on-site live view and playback — no computer or laptop needed for local system checks.
🔗
Alarm-Triggered Recording
Link Ajax motion detectors and door sensors to specific cameras — recording starts automatically the instant an intrusion event occurs.
💾
Up to 16 TB Hot-Swap Storage
Supports two hot-swappable 3.5" HDDs up to 16 TB each. Replace or expand storage without powering down the system.
🧠
Built-In Motion Detection
Onboard software analyzes the video frame for motion — choose between NVR-side or camera-side AI processing depending on your setup.
🔐
Privacy & Access Control
Granular access rights let you control exactly who can view, export, or manage footage — with two-factor authentication and session control.
Technical Specifications

Full Specs

Complete technical data for system design and installation planning.

ParameterValue
Channels8
Video outputHDMI, up to 4K
BandwidthUp to 100 Mbps
PoE ports8 × 802.3af/at
Network1 × Gigabit Ethernet (RJ45)
Storage2 × hot-swappable 3.5" SATA HDD, up to 16 TB each (not included)
CompressionH.265 / H.264
Camera compatibilityAjax cameras + ONVIF-compliant 3rd-party
Power consumptionUp to 24 W (mains)
InstallationIndoor only
Warranty3 years (Authorized Ajax Partner)
Applications

Where It's Used

Trusted by homeowners, businesses, and institutions across Ottawa and Eastern Ontario.

🏢
Office & Commercial Buildings
Centralize recording for up to 8 cameras with local HDMI monitoring at the front desk or security office.
🏪
Retail Stores
Sync footage with door and motion sensors — instantly pull the right clip when an incident is reported.
🏭
Warehouses & Industrial Sites
16 TB hot-swap storage supports long retention periods required for insurance and compliance.
🏠
Multi-Camera Residential
A cost-effective alternative to cloud-only storage for homeowners running 4–8 cameras who want full local control.

Ready to install Ajax NVR (8-ch)?

Our certified Ajax installers will design, supply, and commission your system — usually within 48 hours of your site visit.
