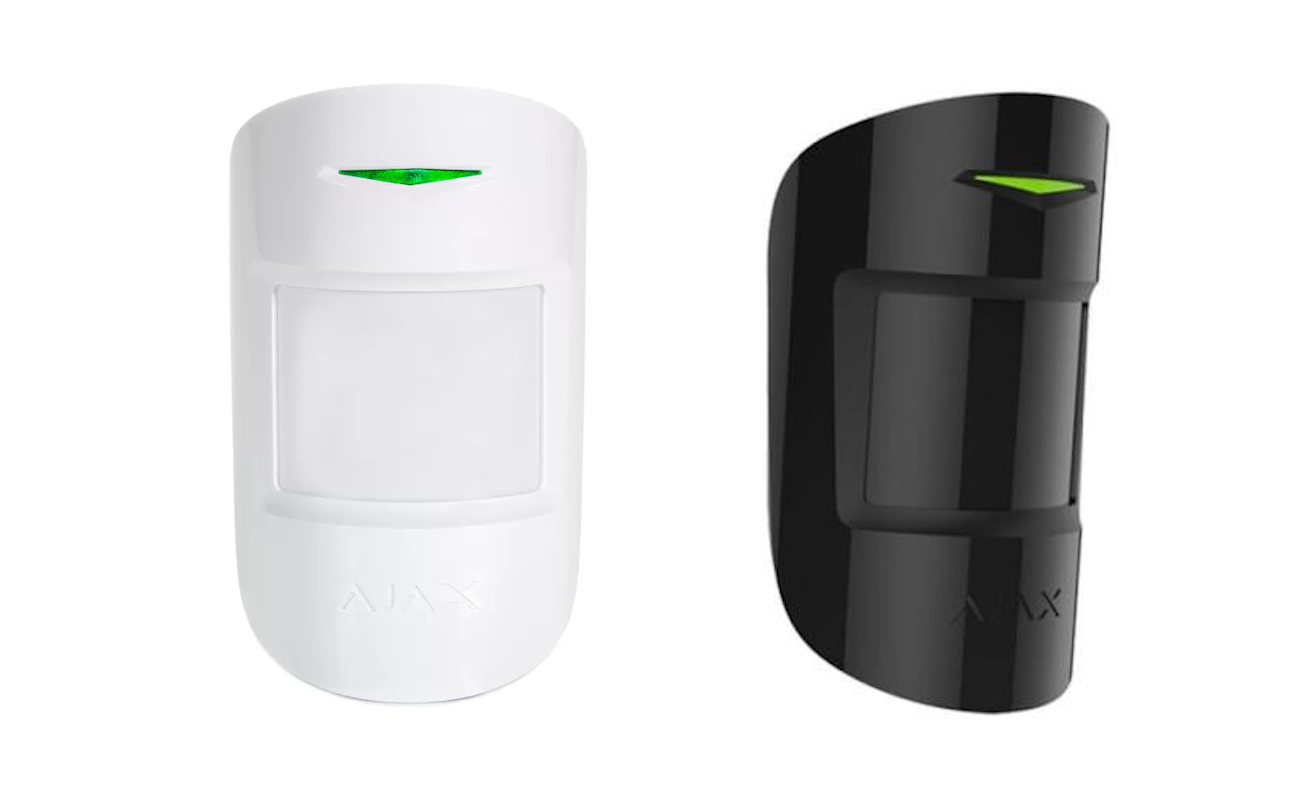

Wireless indoor passive infrared motion detector with pet immunity and anti-masking protection. Detects human movement up to 12 m and notifies you in under 0.15 seconds via the Ajax app and monitoring centre.
Professional-grade hardware engineered for reliable performance in Canadian climate conditions.
Complete technical data for system design and installation planning.
| Parameter | Value |
|---|---|
| Detection range | Up to 12 m / 90° horizontal |
| Detection angle | 88.5° horizontal · 80° vertical |
| Pet immunity | Up to 50 cm height, 20 kg |
| Radio protocol | Jeweller · AES-128 |
| Radio range | Up to 2,000 m (open space) |
| Battery | CR123A · up to 7 years |
| Tamper | Tilt + mounting tamper detection |
| Temperature range | −10°C to +40°C |
| IP rating | IP30 |
| Dimensions | 130 × 65 × 45 mm |
| Warranty | 3 years (Authorized Ajax Partner) |
Trusted by homeowners, businesses, and institutions across Ottawa and Eastern Ontario.
