Security Hub · Central Controller

Hub 2 Plus — Central Intelligence

The most capable Ajax control panel with four independent communication channels: Ethernet, Wi-Fi, and dual SIM (4G/3G/2G). Manages up to 200 devices across intrusion detection, video surveillance, fire safety, and access control from a single platform.

EthernetWi-FiDual SIM200 DevicesJewellerVideo Verify
Get a Quote Contact Us

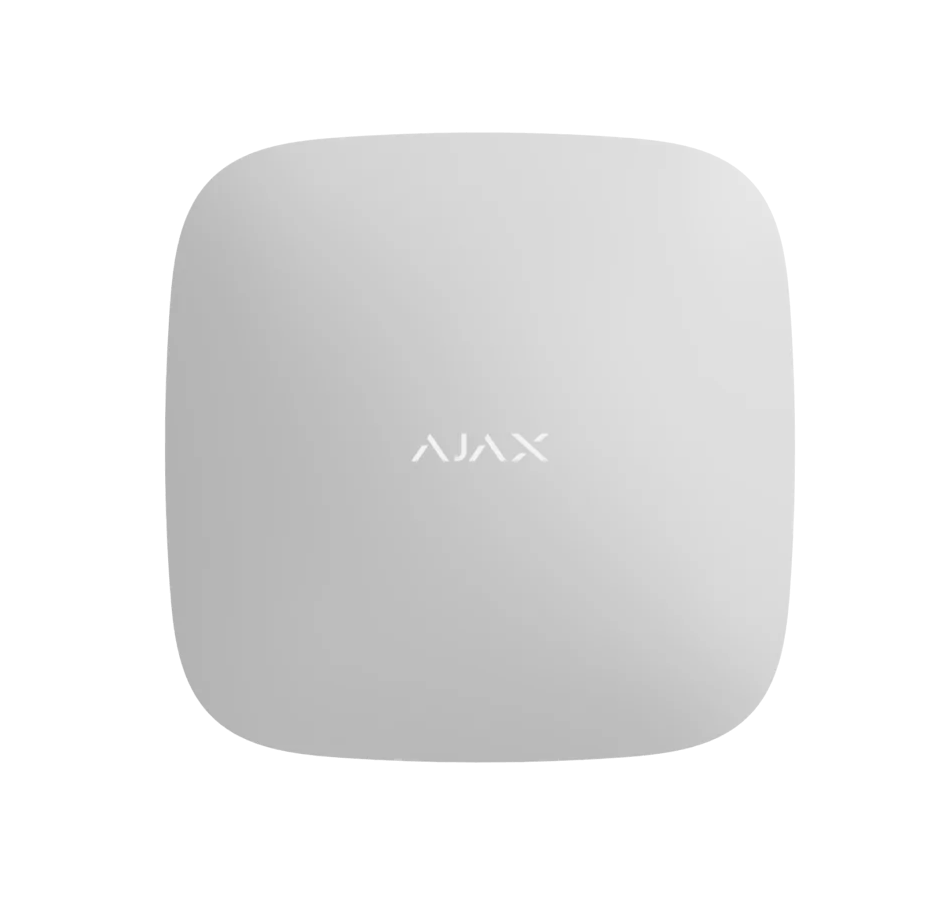

Ajax Hub 2 Plus
Key Features

Why choose Ajax Hub 2 Plus?

Professional-grade hardware engineered for reliable performance in Canadian climate conditions.

📡
4 Communication Channels
Ethernet + Wi-Fi + two SIM cards work simultaneously. Even if three channels are cut, the system still communicates with the monitoring centre.
🔭
200 Connected Devices
One hub manages cameras, motion sensors, door contacts, sirens, keypads, and automation relays — all in one Ajax app.
📹
Visual Alarm Verification
Integrates with Ajax cameras to send a photo or video clip to the monitoring operator when any alarm triggers. Dramatically reduces false dispatch.
🔐
OS Malevich
Proprietary real-time OS provides protection against software tampering, false firmware updates, and hacking attempts.
⚡
Backup Power
Built-in battery keeps the hub operational for 16+ hours without mains power. External 12 V backup battery support.
📱
One App Control
Manage security, cameras, automation, and access control from Ajax Security on iOS and Android — one interface, zero compromises.
Technical Specifications

Full Specs

Complete technical data for system design and installation planning.

ParameterValue
CommunicationEthernet · Wi-Fi · 2× SIM (4G/3G/2G)
Max devices200 Ajax devices
Max users50 users (app) + PRO accounts
ProtocolsJeweller · Wings · Ethernet · Wi-Fi
Alarm verificationVisual (photo/video) via Ajax cameras
Power110–240 V AC · built-in 16 h battery
OSAjax OS Malevich (real-time)
EncryptionAES-128 on all wireless channels
IP ratingIP30
Dimensions163 × 163 × 36 mm
Warranty3 years (Authorized Ajax Partner)
Applications

Where It's Used

Trusted by homeowners, businesses, and institutions across Ottawa and Eastern Ontario.

🏢
Commercial Buildings
Manage access control, cameras, fire detectors, and intrusion sensors in one unified system.
🏭
Industrial Facilities
Dual-SIM redundancy ensures alarm transmission even in areas with poor primary network coverage.
🏘️
Multi-Property Management
Manage multiple sites from one Ajax PRO app. Ideal for property managers and security companies.
🏠
Premium Residential
Homeowners get enterprise-grade security — four communication channels, visual verification, and full remote control.
