Outdoor Curtain Detector · Perimeter

DualCurtain Outdoor — Perimeter Barrier

Wireless outdoor curtain motion detector with two independent optical systems creating a vertical detection zone. Protects doors, windows, gates, and fences with an invisible barrier while ignoring pets, vegetation, and weather interference.

30 m RangeDual OpticsAnti-maskingIP55OutdoorJeweller
Get a Quote Contact Us

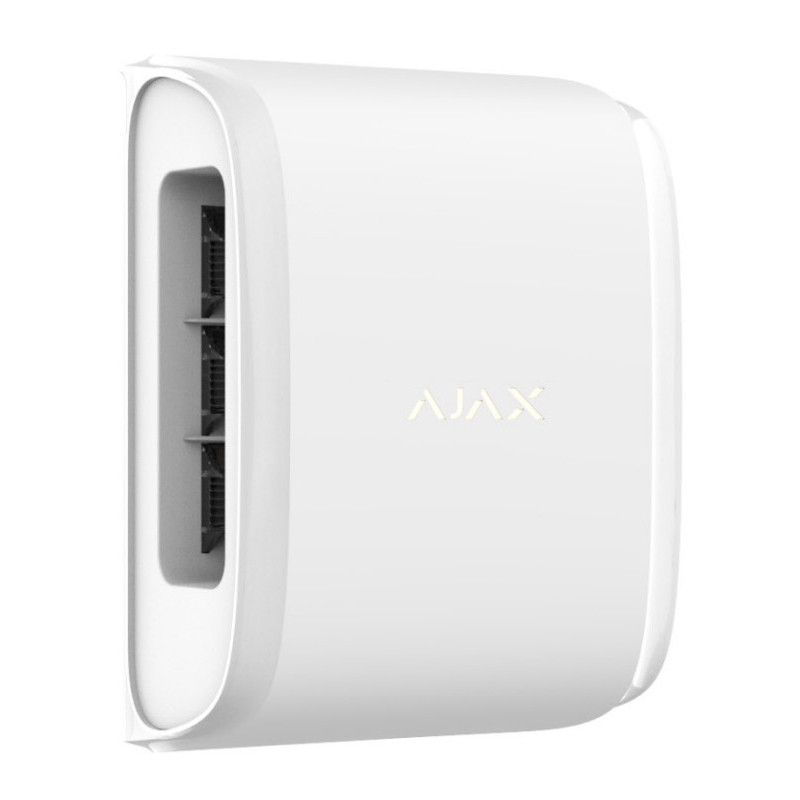

Ajax DualCurtain Outdoor Jeweller
Key Features

Why choose Ajax DualCurtain Outdoor Jeweller?

Professional-grade hardware engineered for reliable performance in Canadian climate conditions.

🚧
Dual Curtain Detection Zone
Two independent PIR sensors create overlapping vertical detection planes — an intruder must cross both to confirm an alarm, dramatically reducing false triggers.
🌿
Weather & Vegetation Filtering
Advanced algorithm distinguishes swaying branches, rain, and small animals from human movement — reliable outdoor operation 24/7.
🐾
Pet Immunity
Low-profile detection zone is configured to ignore animals — cats, dogs, and wildlife passing at ground level do not trigger alarms.
🚫
Anti-Masking
Detects attempts to block the optics with tape, spray, or physical obstruction — triggers immediate tamper alarm.
🌧️
IP55 All-Weather
Sealed housing rated for Canadian outdoor conditions — rain, snow, frost, and summer humidity.
📏
30 m Narrow Zone
Narrow curtain detection pattern covers the full height of a door or gate up to 3 m, reaching 30 m along a fence line.
Technical Specifications

Full Specs

Complete technical data for system design and installation planning.

ParameterValue
Detection rangeUp to 30 m (curtain zone)
Zone patternDual vertical curtains (narrow beam)
Pet immunityYes (configurable zone height)
Anti-maskingYes
IP ratingIP55
Radio protocolJeweller · AES-128
Radio rangeUp to 1,700 m (open space)
Battery2× CR123A · up to 3 years outdoor
Operating temp.−40°C to +60°C
Warranty3 years (Authorized Ajax Partner)
Applications

Where It's Used

Trusted by homeowners, businesses, and institutions across Ottawa and Eastern Ontario.

🏠
Garden Gates & Paths
Creates an invisible detection curtain across any garden path, gate, or gap in a fence.
🅿️
Parking Entrance Barriers
Mounted beside vehicle barriers to detect pedestrians bypassing the main entrance control point.
🏢
Emergency Exits
Alerts when an emergency exit is used outside authorized hours — even without opening the door.
🏭
Perimeter Fencing
Multiple detectors cover extended fence lines, creating overlapping curtain zones with no gaps.

Ready to install Ajax DualCurtain Outdoor Jeweller?

Our certified Ajax installers will design, supply, and commission your system — usually within 48 hours of your site visit.
